Tsukayu ← Back to Products PATENT REGISTERED

Fat Bob FairingSpecifically Designed for Harley Fat Bob (2008–2017) with 6″×9″ Speakers & Stereo

Fat Bob Fairing Front Fat Bob Fairing Side

Note: Stock turn signals may need to be relocated. Assumes stock handlebar, riser, headlight. Not compatible with aftermarket handlebars.

Features

Finishing Options
01

Choices of Finishing

  • Black Gelcoat (+$50)
  • Primer (Ready to Paint)
  • Black Painted (+$100)
  • Color Match (+$550, single tone)
Mounting Brackets
02

Fork Clamp Mounting System

Wiring Harness
03

Waterproof Wiring Harness

Waterproof connector with fused wiring harness for easy and safe installation.

Stereo System
04

Powerful 200W Stereo System

  • 200 Watts total output
  • ESP (Electronic Shock Protection) — anti-vibration, non-rigid mounted
  • USB and AUX input
  • Built-in radio antenna inside the fairing

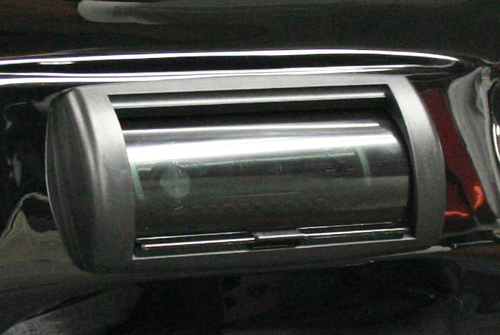

Marine Stereo Housing
05

Waterproof Marine Stereo Housing

Protects the stereo from water and dust while riding.

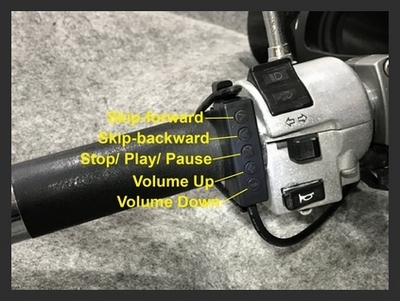

Bluetooth Remote
06

Bluetooth Handlebar Remote v6.0

Optional: +US$150/set

  • Clear sound, new Bluetooth IC, very low noise
  • Waterproof with 3M sealing, rain cover included
  • Works with any Bluetooth music player
  • Works with any device with headphone output (limited function)
  • Pre-installed if ordered with fairing

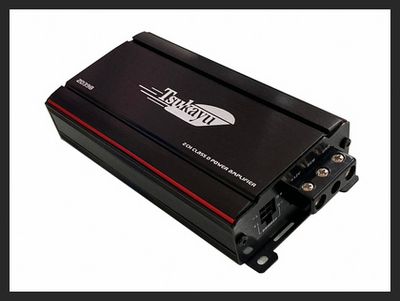

320W Amplifier
07

320W Amplifier (Optional)

Optional: +US$120/set

  • Output: 320 watts — Class-D 2-channel switching amplifier
  • Frequency: 20Hz–20KHz
  • Dimensions: 175×85×37mm

⚠ Note: Radio function will NOT work with amplifier due to Class-D switching interference. Use phone/internet radio instead.

Windshield
08

Windshield Options

  • Flat windshield: clear or tint 5″/8″ — FREE (one set)
  • Flat windshield: clear or tint 10″ — +$20/set
  • Curvy windshield: clear or tint 5″/8″ — +$30/set
  • Curvy windshield: clear or tint 10″ — +$40/set
  • Compatible with Harley windshields (3-hole design)
6x9 Speakers
09

Powerful 6″×9″ Waterproof Speakers

  • 150W RMS / 350W Peak power each
  • 20 oz strong magnet each
  • Waterproof
  • More room inside creates stronger bass
12V Plug
10

12 Volt Plug

Comes with Full Stereo version. Supplies power for phone charging, cigarette lighter, music players, etc.

Metal Threads
11

Metal Threads Embedded in Fiberglass

  • No need to separate inner and outer fairing for installing brackets
  • 6 metal threads: 4 for mounting brackets (2 each side) + 2 at bottom for combining inner/outer
  • Much more secure than nuts, easier periodic checks
12

Additional Features

  • Wind & Weather Protection — make long trips easy with protection from elements
  • Double Seal Edge — double seals between outer and inner fairing for noise-free, quiet operation
  • Excellent Quality Fiberglass construction
  • Real Ready to Paint — primed, compatible with all paint types, smooth finish without fiber strand print-through
  • Factory Color Matching (Optional) — match factory color at low cost (+US$550, single tone only)
  • Compatible with Harley Accessories — Harley windshields with 3-hole design

🎁 Included FREE (Full Stereo)

📖 Stereo Unit User Manual
