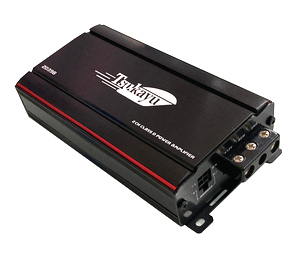

Tsukayu 320W Amplifier (2D39)Fairing Accessory
US$120
2 Channel Class-D Amplifier with 320W max output. Advanced IR Class-D design with SMD and 4-layer glass fiber PCB. Mini and compact size. Multiple protection modes including thermal, over-current, and short circuit. Note: Due to Class-D switching amplifier characteristics, radio function will NOT work if amplifier is added — use internet radio via phone instead.
Specifications
- Output power (RMS) @ 4Ω: 2×100W
- Output power (RMS) @ 2Ω: 2×160W
- Output power (RMS) @ 4Ω bridged: 1×320W
- Output power (Max): 320W
- Frequency response: 20Hz–20KHz
- Distortion (THD): <0.08%
- Input sensitivity: 200mV–10V
- Signal to noise ratio: >90dB
- Dimensions: 175×85×37mm
Compatible With
- ✓ GPS Fairing
- ✓ 6x9 Fairing
- ✓ Classic Fairing
- ✓ M109R Fairing
- ✓ Fat Bob Fairing
- ✓ Boox One GPS Fairing
- ✓ Double Boox Fairing (included, order for replacement)
- ✓ Boox One Storage Fairing (included, order for replacement)
- ✓ Small Boox 6x9 Fairing (included, order for replacement)
- ✓ Choppa Fairing (included, order for replacement)
