Installation Guide

Strong Hardbags

Two Mounting Options Available

Quick Release brackets — for bikes with stock pipes (pre-drilled, no drilling needed)
Universal brackets — for bikes with aftermarket pipes (custom positioning)

Option 1: Quick Release Mounting System

📄 Quick Release Installation PDF

Remove bags in just 2-3 seconds. Brackets made of chrome quality stainless steel.

QR Parts — Three parts: Part A (bike-specific), Part B (on bags), Part C (handles).

Install Part A — Install Part A on fender struts.

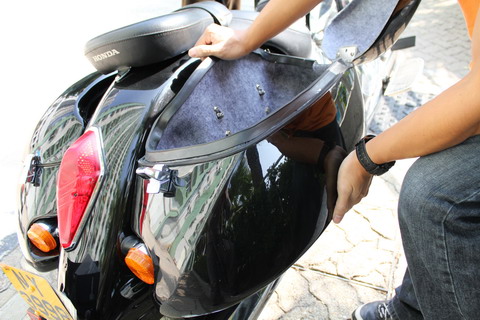

Mount bags — Put hardbags on and adjust brackets.

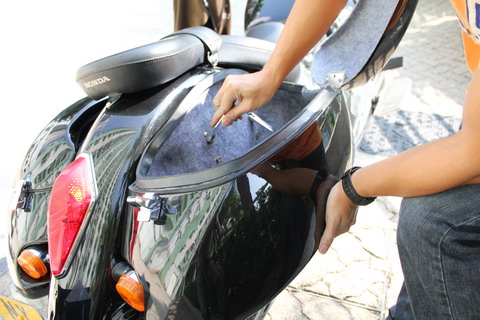

Latch — Put on Part C handles and latch.

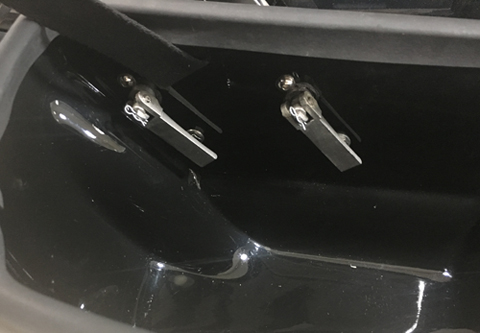

Pin — Latched. Insert the safe pin.

Option 2: Universal Mounting System

📄 Universal Installation PDF

For bikes with aftermarket pipes. Install bags wherever you want them to be.

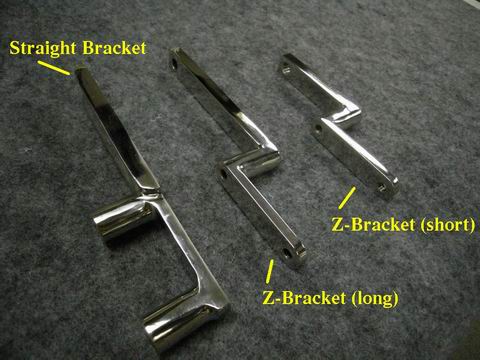

Brackets — Different brackets provided for different bikes.

Mounting — Fits very closely to your fender.

Start from belt guard side. Bolt brackets on with supplied spacers.
Put painters tape on the area to be drilled. Mark drill points using paint on brackets.
Position bag and press against brackets to transfer marks.
Drill with 5/16 bit, then 3/8th bit for bottom 2 holes only.
Test fit, verify clearances, then mirror holes to other bag.
Install bags with fender washers. Tighten all bolts and check with full load before riding.

⚠ Warning:

Do not exceed maximum recommended load of 20 lbs.
Perform periodic check every week.
Improper loading and set up may lead to loss of control of motorcycle and accident.
Installation is recommended to be performed by professionals.
