Installation Guide

HD Style Quick Release Hardbags for Sportster — Quick Release Mounting System

📄 Download Quick Release Installation PDF

Quick Release Mounting System Overview

Tsukayu quick release mounting brackets are made of very strong, thick, chrome quality stainless steel. They are impossible to be bent in normal use and are the main element in Tsukayu's mounting system. Free of vibration, life-long durability.

With these mounting brackets, you may remove the bags in just 2-3 seconds. Your hardbags will be pre-drilled with mounting holes and stick very close to your fender.

Installation Videos

Installation Steps

Quick Release Parts — Three parts of Tsukayu quick release brackets (Part A, B, C). Different Part A for different bikes.

Install Part A on the fender struts with supplied bolts and spacers. Leave adjustable.

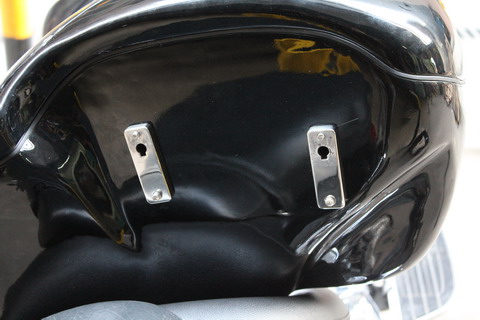

Part B on bags — Part B comes already installed on the hardbags.

Mount bags — Put the hardbags on, adjust Part A. Only one position allows the bags on.

Part C handles — Put on Part C (the handles), and latch.

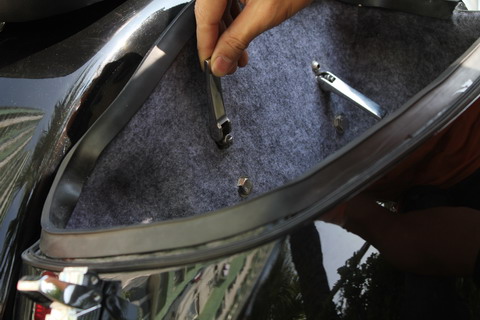

Push and latch — Push the hardbag toward the fender strut. Handles must be up straight to put ON and OFF.

⚠ Warning:

Do not exceed maximum recommended load of 20 lbs.
Perform periodic check every week.
Improper loading and set up may lead to loss of control of motorcycle and accident.
Installation is recommended to be performed by professionals.
